The ‘M’ Crush

Heavy Duty construction : Frame 65x65x3 Australian Steel

Gate Rails: 115x42x2 Australian Steel

Plate: 8mm Australian Steel

Certified Australian Made from Australian Materials

Smooth Action Walkthrough Headbale

High Clearance Bale Arms (hard to foul)

Lower Bale Arm Supported through Hinge for reduced maintenence and clean out

Low Noise Ratchet Closure Mechanism

Lowest Handle Weight operation Hicksnan Head Bail for low operator fatigue

Near Side and Offside options

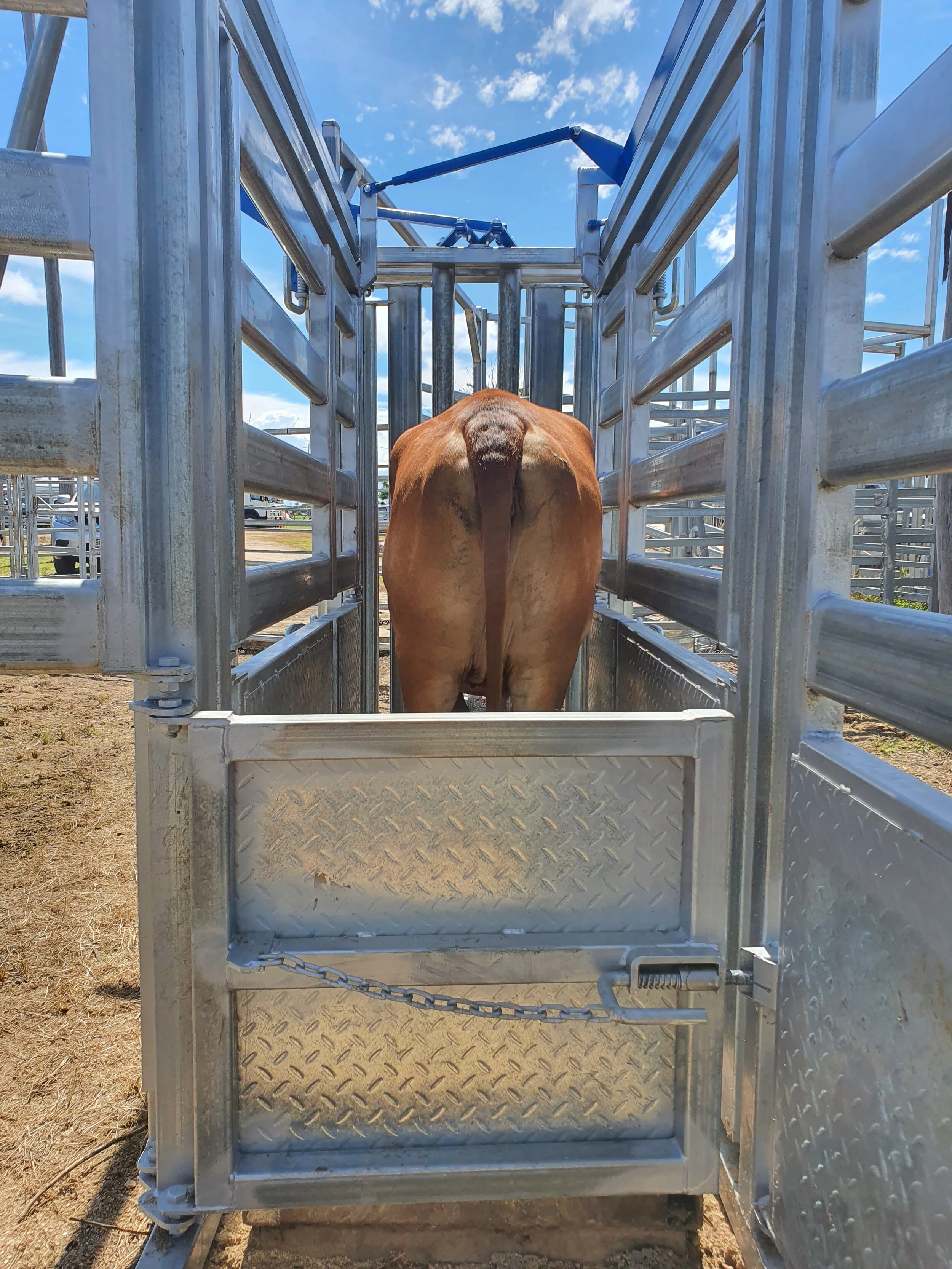

Split Sliding Entrance Gate

Weigh bar Mounting Plates

Slam Catch Latches on all gates

Split (top/bottom) Body Gates Operator Side

Multilocation Rear Headbale Handle

Split (top/bottom) Body Gates Non Operator Side

Vet Access - Split Top/ Bottom Gates Operator Side

Single Gate Non Operator Side - Full Walk Though

Foot Operated Vet Gate Latch

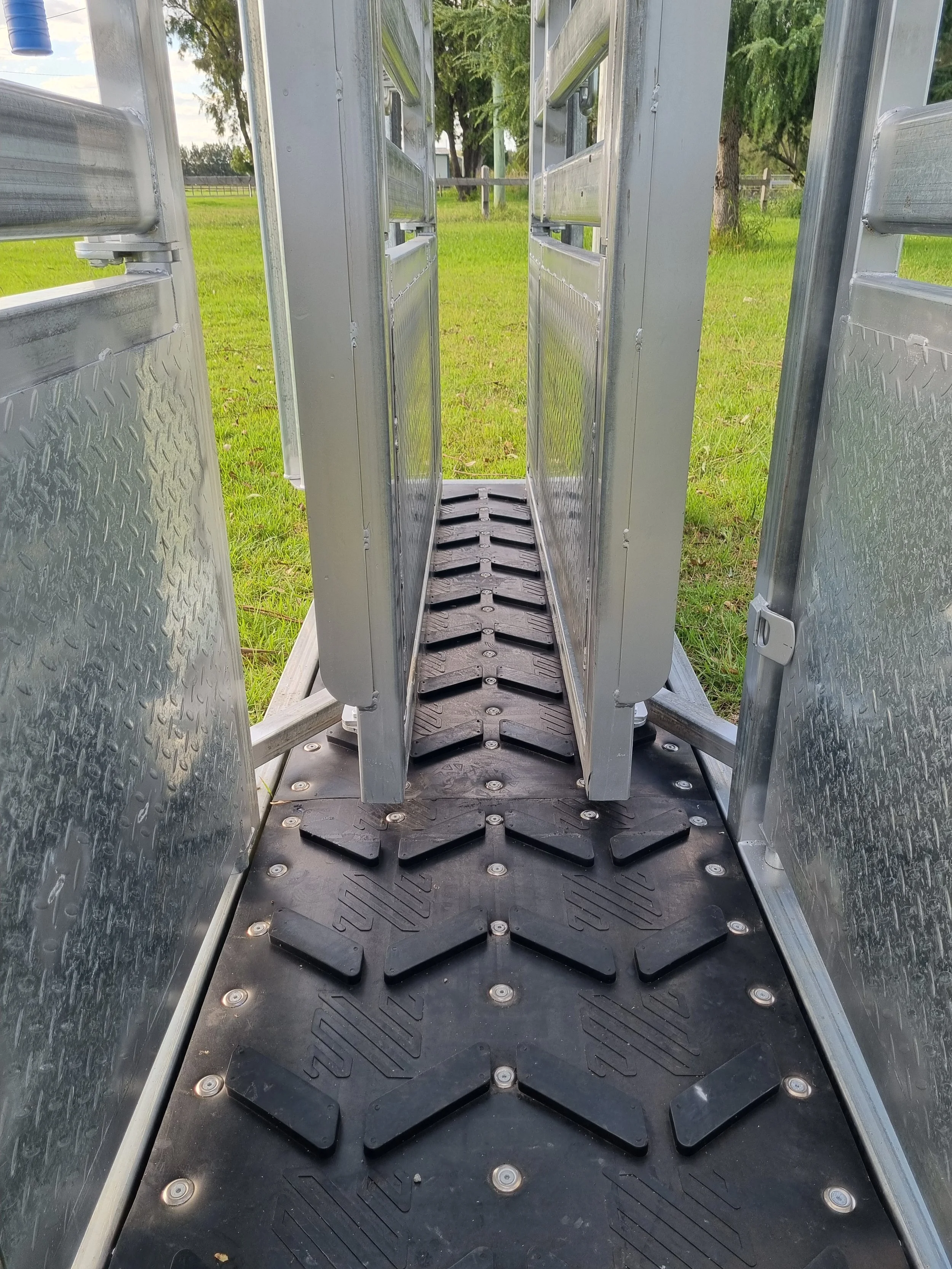

Sheeted Bottom Gates

Parallel Ratchet Squeeze - Low Friction - Low Operator Strength Input Required - 250mm width when fully actioned

Body Gates Split Horizontally and Vertically (4 body gates each side)

Optional extras: Chin Bars, Baulk Gate, Drop in rubber coated floors, monitor mounting bars.
